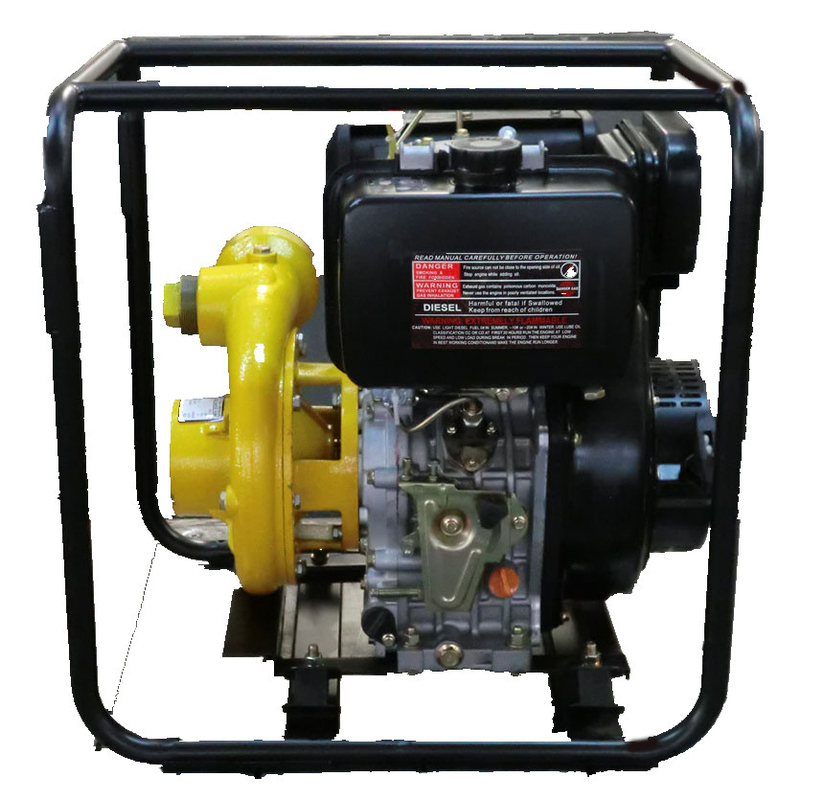

3 Inch Diesel Fuel Driven High Pressure Water Pump 5.5L Fuel Tank KDP30HS
Detail produk:
| Place of Origin: | CHINA |
| Nama merek: | KAIAO |
| Sertifikasi: | CE |
| Model Number: | KDP30HS |
Syarat-syarat pembayaran & pengiriman:
| Minimum Order Quantity: | 5 |
|---|---|
| Packaging Details: | CARTONS |
| Payment Terms: | Western Union, T/T, L/C |
|
Informasi Detail |
|||
| Tekanan: | Tinggi | bahan pompa: | besi cor |
|---|---|---|---|
| Kekuatan: | berbahan bakar diesel | Model: | KDP30HS |
| Aliran maks. (m3/jam): | 47 | Diameter (mm) (inci): | 80(3") |
| Menyoroti: | Pompa Air Tekanan Tinggi Bahan Bakar Diesel,Pompa air bertekanan tinggi 5.5L,KDP30HS 3 Inci Pompa Air Tekanan Tinggi |
||
Deskripsi Produk
Water pump
1. ISO&CE improved
2. Driven by strong KAIAO 4-stroke diesel engine
3. Bilobed wheel design
4. Full frame structure ensures the outstanding performance of the pump in extremely hard condition.
| 3"INCH IRON High Pressure Water Pump | |
| Model | KDP30HS |
| Diameter(mm) (in) | 80(3" ) |
| Max. flow(m3/h) | 47 |
| Max. lift(m) | 80 |
| Max. suction lift(m) | 8 |
| Rotational speed(rpm) | 3600 |
| Self-priming time(s/4m) | 40 |
| Pump shaft | Steel |
| Pump housing | cast iron |
| Impeller | cast iron |
| Engine model | KA186F |
| Engine type | Single-cylinder, vertical, four-stroke,air cooled |
| Bore*stroke(mm) | 86*70 |
| Displacement (L) | 0.406 |
| Power (kW) | 6.3/3600 |
| Fuel consumption rate(g.kW/h) | 281 |
| Compression ratio | 19 |
| Lubrication system | Pressure splash Type |
| Engine starting system | Recoil starter |
| Fuel oil model | Summer:0#,Winter:-10# |
| Lube oil model | SAE10W-30 (above CD grade) |
| Lube oil capacity (L) | 1.1 |
| Fuel tank capacity (L) | 5.5 |
| Dimension (L*W*H)(mm) | 605*525*625 |
| Net weight(Kg) | 75 |
| Gross weigt(Kg) | 78 |
