CE Generator Diesel Kecil 3Fase 6.5kw Generator Diesel Set 8600E3 Untuk Rumah
Detail produk:
| Place of Origin: | CHINA |
| Nama merek: | KAIAO |
| Sertifikasi: | CE |
| Model Number: | KDE8600E3 |
Syarat-syarat pembayaran & pengiriman:
| Minimum Order Quantity: | 5 |
|---|---|
| Delivery Time: | 12 work days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 3000PCS PER MONTH |
|
Informasi Detail |
|||
| Kekuatan: | 6KW 6,5KW | Portabel: | Dengan Roda |
|---|---|---|---|
| Baterai: | 36Ah | ||
| Menyoroti: | Rumah 8600E3 miniatur generator diesel,6Set Generator Diesel.5kw,CE Generator Diesel Kecil 3Fase |
||
Deskripsi Produk

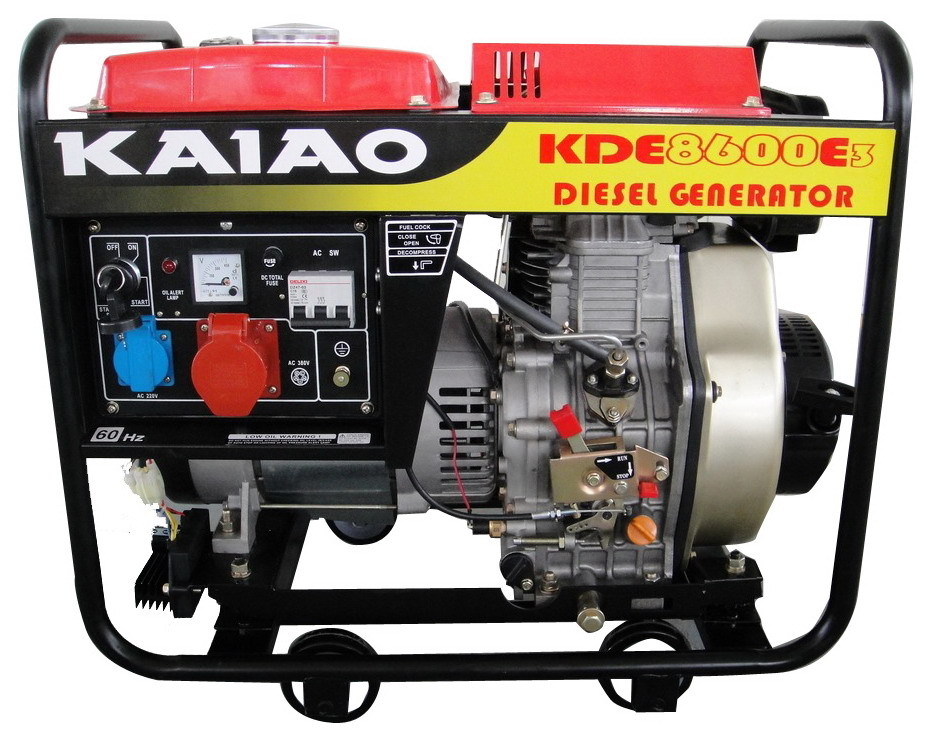

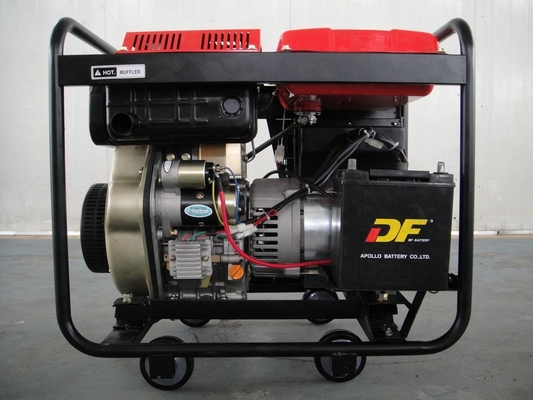

KAIAO EXCELLENT DIESEL GENERATOR
Engine starting system Type X: Recoil starter Type E: Electric starter
| Diesel generator KDE8600E3 | ||
| Model | KDE8600E3 | |
| Frequency (Hz) | 50 | 60 |
| Output power (KVA) | 7.5 | 8 |
| Max. Power(KVA) | 8 | 8.5 |
| Voltage (V) | 230/400 | 240/416 |
| Current (A) | 10.8 | 11.1 |
| Engine speed (r/min) | 3000 | 3600 |
| Phase | Three | |
| Power factor(cosφ) | 0.8 | |
| Excitation system | Self-excited constant voltage | |
| Noise level (7m) | DB (A): 77 | |
| Fuel tank capacity (L) | 12.5 | |
| Structure | Open-frame | |
| Panel | Ordinary | |
| Outputsocket | Two | |
| DC12V output | Terminal post | |
| Engine Model | KA188FE | |
| Bore*stroke (mm) | 88 *75 | |
| Displacement (L) | 0.45 | |
| Power (KW) | 7.7/3000 | 8.3/3600 |
| Fuel consumption rate (g. KW/h) | 290 | 295 |
| Compression ratio | 19 | |
| Lubrication system | Spring | |
| Engine starting system | Electric starter | |
| Diesel oil model | Summer: 0#, winter: -10# | |
| Lube oil model | SAE10W-30 (above CD grade) | |
| Lube oil capacity (L) | 1.65 | |
| Battery capacity(V-AH) | 12V-36Ah | |
| Net weight(KG) | 105 | |
| Dimension(L*W*H) | 760×515×710 | |
