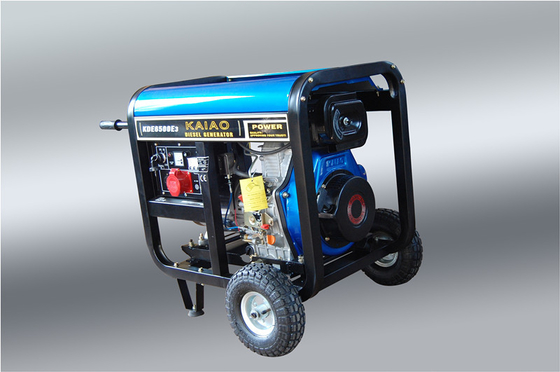

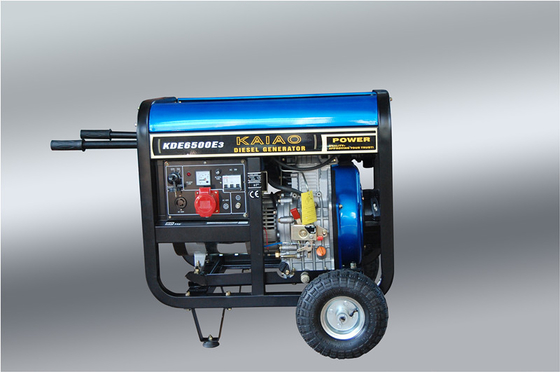

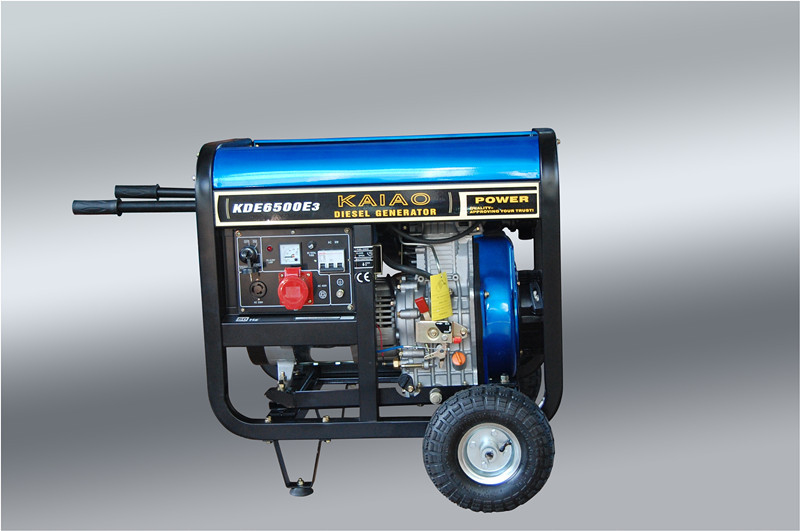

Open Frame Air Cooled Diesel Generator 5.5Kva Self Excited Constant Voltage Excitation
Detail produk:
| Place of Origin: | CHIAN |
| Nama merek: | KAIAO |
| Sertifikasi: | CE |
| Model Number: | KDE6500E3 |
Syarat-syarat pembayaran & pengiriman:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Harga: | USD410.FOB.SHANGHAI |
| Packaging Details: | CARTON |
| Delivery Time: | 20 days |
| Supply Ability: | 10000 SETS PER MONTH |
|
Informasi Detail |
|||
| Model: | GENERATOR DIESEL KDE6500E3/5.5KVA | Frekuensi: | 50/60hz |
|---|---|---|---|
| Kekuatan Utama: | 5,5/6,3KVA | kekuatan penuh: | 6KVA |
| Struktur: | bingkai terbuka | Fase: | AC Tiga Fasa |
| Menyoroti: | Generator Diesel yang Dingin Udara 5,5Kva,kompak Generator Diesel Dingin Udara |
||
Deskripsi Produk
Open Frame Air Cooled Diesel Generator 5.5Kva Self Excited Constant Voltage Excitation
| Model: KDE6500E3/AC Single phase 5KW key start diesel generator | ||||||||
| Frequency: | 50HZ | |||||||
| Rate Power(KW): | 5.5KVA | |||||||
| Max.power(KW): | 6.3KVA | |||||||
| Voltage(V): | 240/416V | |||||||
| Engine Speed(rpm): | 3000rpm | |||||||
| Phase: | AC Three Phase | |||||||
| Power factor: | 0.8 | |||||||
| Excitation system: | Self-excited constant voltage | |||||||
| Noise level(at 7m): | 75-77dB(A) | |||||||
| Fuel Tank Capacity: | 12.5L | |||||||
| Structure: | Open- Structure | |||||||
| Panel: | Ordinary Panel Board | |||||||
| DC 12V output: | Terminal Post | |||||||
| Net weight: | 100Kg | |||||||
| Dimension(L*W*H): | 760*515*710mm | |||||||
| Engine Model: | KA186F/8HP single cylinder air-cooled diesel engine set | |||||||
| Engine Type: | Single Cylinder and four stroke air-cooled diesel engine | |||||||
| Bore*Stroke(mm): | 86*72mm | |||||||
| Displacement(L): | 0.406L | |||||||
| Rated Power: | Key Start and recoil start | |||||||
| Quantity: | 68 sets | |||||||
| Unit Price: | US$390.FOB.Shanghai | |||||||
| Alternator: | 100% Copper | |||||||
| Note: | with four wheels,17Ah Battery | |||||||
| Payment: | T/T | |||||||
| Warranty: | 12 months | |||||||
| Delivery Time: | 20-25 days | |||||||
